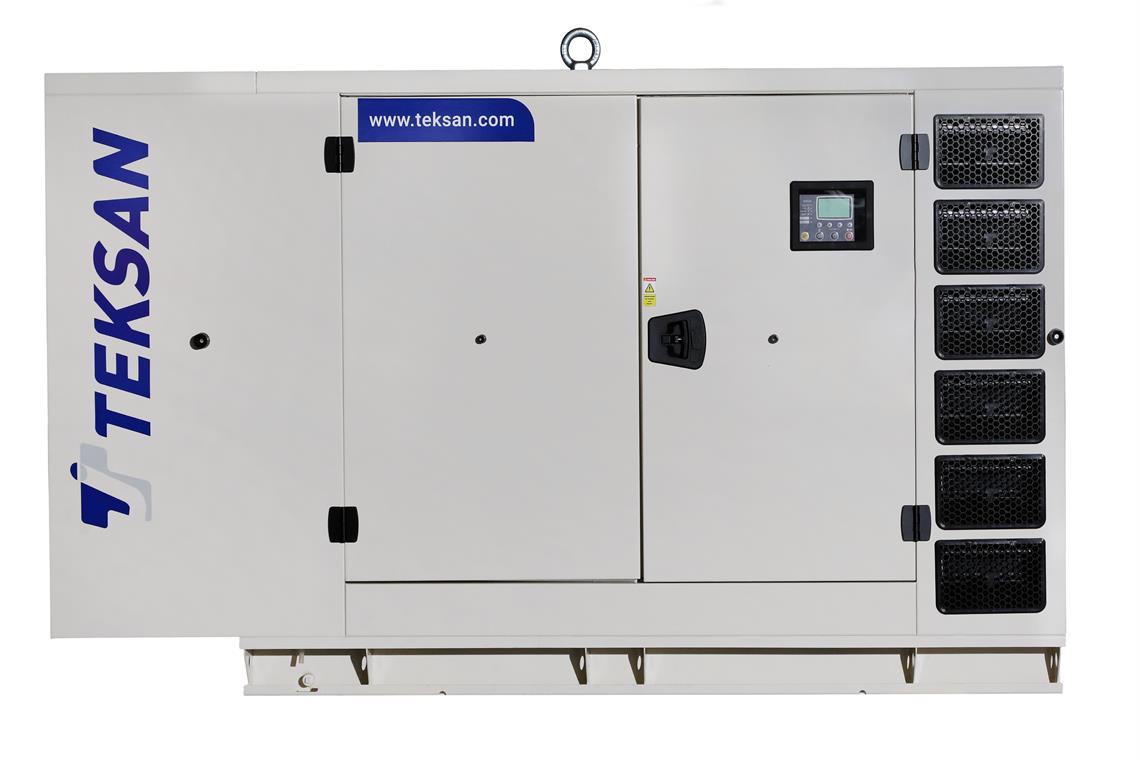

TJ66PE

GET A QUOTE

Output Power	400 VAC
Standby (ESP)	kVA	66
Standby (ESP)	kW	52.8
Prime (PRP)	kVA	60
Prime (PRP)	kW	48

Size	W x L x H (mm)	Weight (kg)	Fuel Tank (lt)	Noise dB(A) @ 7m
Canopied	950 x 2400 x 1410	1030	140	67
Open Skid	950 x 1950 x 1250	790	140	N/A

Battery

Engine
Manufacturer	PERKINS
Model	1103A-33TG2
No of Cylinders	3
Cylinder Configuration	INLINE
Displacement	3,3 lt
Bore	105 mm
Stroke	127 mm
Compression Ratio	17,25:1
Aspiration	TURBOCHARGE
Governor Type	MECHANIC
Cooling System	WATER
Coolant Capacity	10,2 lt
Lubrication Oil Capacity	7,9 lt
Electrical System	12 VDC
Speed / Frequency 50 Hz	1500 rpm / 50 Hz rpm
Engine Gross Power (Standby 50 Hz)	60,5 kW
Fuel Consumption %110 ESP 50 Hz	15,6 lt/h
Fuel Consumption %100 PRP 50 Hz	14,1 lt/h
Fuel Consumption %75 PRP 50 Hz	10,5 lt/h
Fuel Consumption %50 PRP 50 Hz	7,3 lt/h
Exhaust Outlet Temperature 50 Hz	543 °C
Exhaust Gas Flow 50 Hz	9,8 m3/min
Combustion Air Flow 50 Hz	3,8 m3/min
Cooling Air Flow 50 Hz	110,4 m3/min

Alternator
No of Phases	3
Power Factor	0,8
No of Bearings	SINGLE
No of Poles	4
No of Leads	6-12
Insulation Class	H-F
Degree of Protection	IP 23
Excitation System	AVR (Automatic Voltage Regulator), Brushless

Equipment

Engine

In Teksan generator sets, leading engine brands that have state of the art technology and have compliance with ISO 8528, ISO 3046, BS 5514, DIN 6271 standarts, are being used. These engines with low fuel consumption, provide accurate speed setting and order, mount to the fuel pump, also have mechanic or electronic type governors.

Alternator

In products Teksan produced, leading alternator brands of the world that have state of the art technology, high quality, productivity and durability, are being used. All alternators, which pass necessary test process and found appropriate according to EC 60034-1; CEI EN 60034-1; BS 4999-5000; VDE 0530, NF 51- 100,111; OVE M-10, NEMA MG 1.22. standarts, have bearing system that does not need maintenance, with electronic type voltage regulator providing voltage setting.

Control Panel

Standard control panel, that is used in Teksan generator sets, ensures comfortable and safe usage. All measured and statistical parameters, operating modes, notice and alarms and condition of generator, are monitored easily from the control panel. On the front of the panel’s metal body has electronic control module and the emergency stop button and the panel’s metal body is made of steel sheet and is painted with electrostatic powder paint. Teksan offers panel design and solutions that comply with special requirements of customers as well as quality standard panels.

Chassis and Fuel Tank

Chassis is manufactured from steel that has features and durability for carrying burden of generator set. Thanks to its rigid structural design and anti-vibration mounts, it reduces vibration level to minimum. All chassis contain lifting lugs. Apart from chassises that are produce by Teksan, special solutions that design in accordance with customer desires, make transportation and positioning easier. In generator sets with 1375 kVA power, the fuel tank is located inside the chassis. For models of 1375 kVA and above, the fuel tank is usually external, but in some cases, it can also be located inside chassis.

Cooling System

System, that consists of quality industrial - type radiator, expansion tank and cooler fan, keeps the temprature of generator set’s equipments constant at a proper level.

TEKSAN Standard Canopies' default features are as follows;

Compatible with 2000/14/EC directives, certified noise emission level,
2 or 4 points transport possibility according to cabin size,
Hidden exhaust inside the canopy,
Emergency stop button located on the canopy,
Improved air suction channel to ensure homogenous cooling in the canopy,
Radiator air outlet and exhaust with designed towards above,
Lid on cab that provides to be filled up water and antifreeze easily to the radiator,
Amplified paint system against corrosion and rust,
Improved performance in terms of sound insulation,
Demounted parts that make transportation and maintenance easier,

As well as the standard range of canopies, TEKSAN can also design tailormade canopies with specific sound level or size upon customer requests.

Some Optional Equipments that Teksan provides with Generator Sets;

Medium voltage alternator,
Remote radiator applications,
Automatic fuel filling system,
Fuel tank, oil pan, dashboard, alternator, coil heaters,
Alternator with double AVR and PMG,
Synchronization systems,
The generator output breaker,
Grid-generator transfer switches,
Accordance with the specific volume of demand-insulated cabins,
Seismic solutions,
Trailer,
Remote monitoring,
External Fuel Tank
