TJ15BD

GET A QUOTE

Output Power	400 VAC
Standby (ESP)	kVA	13
Standby (ESP)	kW	10
Prime (PRP)	kVA	11
Prime (PRP)	kW	9

Size	W x L x H (mm)	Weight (kg)	Fuel Tank (lt)	Noise dB(A) @ 7m

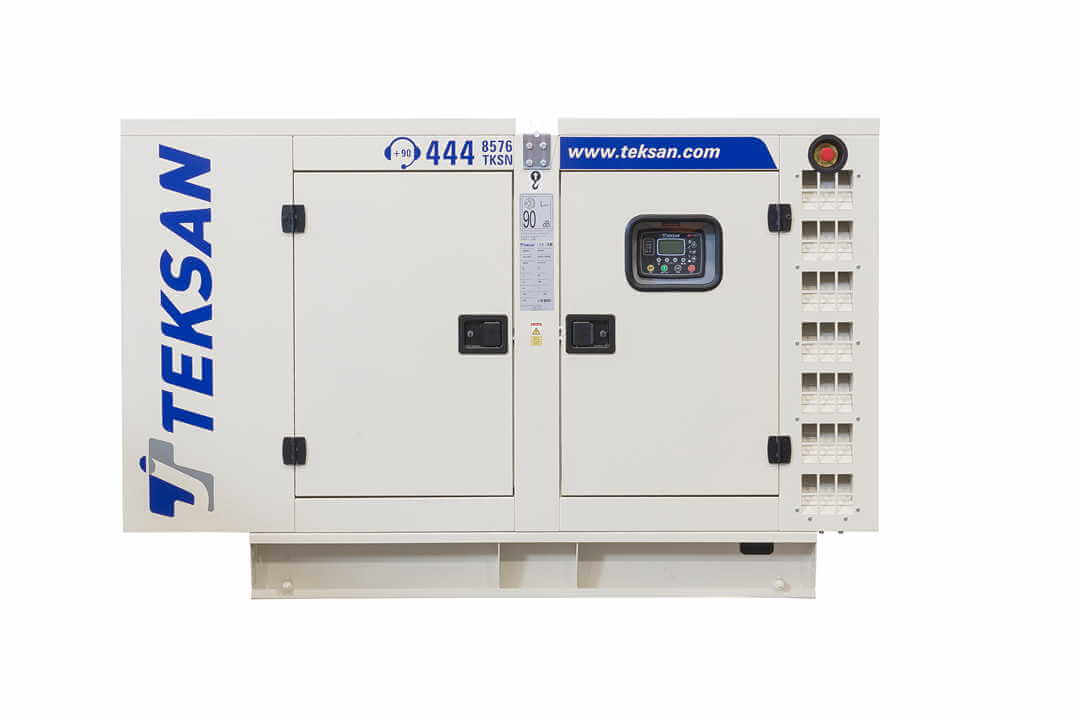

Canopied	800x2000x1180	640	105	67
Open Skid	800x1700x975	500	105	N/A

Battery

Engine
Manufacturer	BAUDOUIN
Model	4M06G2D0/S
No of Cylinders	4
Cylinder Configuration	IN LINE
Displacement	2,3 lt
Stroke	92 mm
Bore	89 mm
Compression Ratio	17,5:1
Aspiration	NATURAL ASPIRATION
Governor Type	ELECTRONIC
Cooling System	WATER
Coolant Capacity	8,6 lt
Lubrication Oil Capacity	9,5 lt
Electrical System	12 VDC
Speed / Frequency 50 Hz	1500 rpm / 50 Hz rpm
Engine Gross Power (Standby 50 Hz)	20 kW
Fuel Consumption %110 ESP 50 Hz	5,2 lt/h
Fuel Consumption %100 PRP 50 Hz	4,7 lt/h
Fuel Consumption %75 PRP 50 Hz	3,6 lt/h
Fuel Consumption %50 PRP 50 Hz	2,6 lt/h
Exhaust Outlet Temperature 50 Hz	700 °C
Exhaust Gas Flow 50 Hz	4,5 m3/min
Combustion Air Flow 50 Hz	1,38 m3/min
Cooling Air Flow 50 Hz	63 m3/min

Alternator
No of Phases	3
Power Factor	0,8
No of Bearings	SINGLE
No of Poles	4
No of Leads	6-12
Insulation Class	H-F
Degree of Protection	IP 23
Excitation System	AVR (Automatic Voltage Regulator), Brushless

Equipment

Engine

In Teksan generator sets, leading engine brands that have state of the art technology and have compliance with ISO 8528, ISO 3046, BS 5514, DIN 6271 standarts, are being used. These engines with low fuel consumption, provide accurate speed setting and order, mount to the fuel pump, also have mechanic or electronic type governors.

Alternator

In products Teksan produced, leading alternator brands of the world that have state of the art technology, high quality, productivity and durability, are being used. All alternators, which pass necessary test process and found appropriate according to EC 60034-1; CEI EN 60034-1; BS 4999-5000; VDE 0530, NF 51- 100,111; OVE M-10, NEMA MG 1.22. standarts, have bearing system that does not need maintenance, with electronic type voltage regulator providing voltage setting.

Control Panel

Standard control panel, that is used in Teksan generator sets, ensures comfortable and safe usage. All measured and statistical parameters, operating modes, notice and alarms and condition of generator, are monitored easily from the control panel. On the front of the panel’s metal body has electronic control module and the emergency stop button and the panel’s metal body is made of steel sheet and is painted with electrostatic powder paint. Teksan offers panel design and solutions that comply with special requirements of customers as well as quality standard panels.

Chassis and Fuel Tank

Chassis is manufactured from steel that has features and durability for carrying burden of generator set. Thanks to its rigid structural design and anti-vibration mounts, it reduces vibration level to minimum. All chassis contain lifting lugs. Apart from chassises that are produce by Teksan, special solutions that design in accordance with customer desires, make transportation and positioning easier. In generator sets with 1375 kVA power, the fuel tank is located inside the chassis. For models of 1375 kVA and above, the fuel tank is usually external, but in some cases, it can also be located inside chassis.

Cooling System

System, that consists of quality industrial - type radiator, expansion tank and cooler fan, keeps the temprature of generator set’s equipments constant at a proper level.

Some Optional Equipments that Teksan provides with Generator Sets;

Medium voltage alternator,
Remote radiator applications,
Automatic fuel filling system,
Fuel tank, oil pan, dashboard, alternator, coil heaters,
Alternator with double AVR and PMG,
Synchronization systems,
The generator output breaker,
Grid-generator transfer switches,
Accordance with the specific volume of demand-insulated cabins,
Seismic solutions,
Trailer,
Remote monitoring,
External Fuel Tank

TEKSAN Standard Canopies' default features are as follows;

Compatible with 2000/14/EC directives, certified noise emission level,
2 or 4 points transport possibility according to cabin size,
Hidden exhaust inside the canopy,
Emergency stop button located on the canopy,
Improved air suction channel to ensure homogenous cooling in the canopy,
Radiator air outlet and exhaust with designed towards above,
Lid on cab that provides to be filled up water and antifreeze easily to the radiator,
Amplified paint system against corrosion and rust,
Improved performance in terms of sound insulation,
Demounted parts that make transportation and maintenance easier,

As well as the standard range of canopies, TEKSAN can also design tailormade canopies with specific sound level or size upon customer requests.

TJ-509-T MK3 is a next generation genset controller combining multi-functionality and wide communication capabilities together with a reliable and low-cost design. The same controller provides synchronization, load share, AMF, ATS, Remote Start, Engine Control and Remote Display Panel functionalities. The module comes ready for remote monitoring over GSM or Ethernet with plug-in communication modules. Various plug-in modules provide unlimited expansion capabilities allowing to meet any special requirement. The unit complies and mostly exceeds world’s tightest safety, vibration and environmental standards for the industrial category. Software features are complete with easy firmware upgrade process through USB port. The Windows based PC software allows monitoring and programming through USB, RS-485, Ethernet and GPRS. The Rainbow Scada web monitoring service allows monitoring and control of an unlimited number of gensets through any web browser.

Multi genset synchronizer and load share*
Multi genset mains synchronizer*
Single genset parallel with mains*
AMF unit with uninterrupted transfer
ATS unit with uninterrupted transfer
Remote start controller
Manual start controller
Engine controller
Remote display & control unit
Waveform display of V&I
Harmonic analysis of V&I

*Optional with plug-in module

Ethernet port (10/100Mb)*
GSM-GPRS*
Embedded web server*
Web monitoring*
Web programming*
Central Monitoring through internet*
SMS message sending*
E-mail sending*
Central monitoring*

Modbus RTU through RS-485*
Modbus TCP/IP*
SNMP*
USB Host*
CANBUS-2 for inter- module comm.*
USB Device
PC software: Rainbow Plus
J1939-CANBUS for electronic engines

*Optional with plug-in module

3 phases 4 wires, star
3 phases 4 wires, delta
3 phases 3 wires, delta, 3 CTs
3 phases 3 wires, delta, 2 CTs (L1-L2)
3 phases 3 wires, delta,2 CTs (L1-L3)
2 phases 3 wires, L1-L2
2 phases 3 wires, L1-L3
1 phase 2 wires
